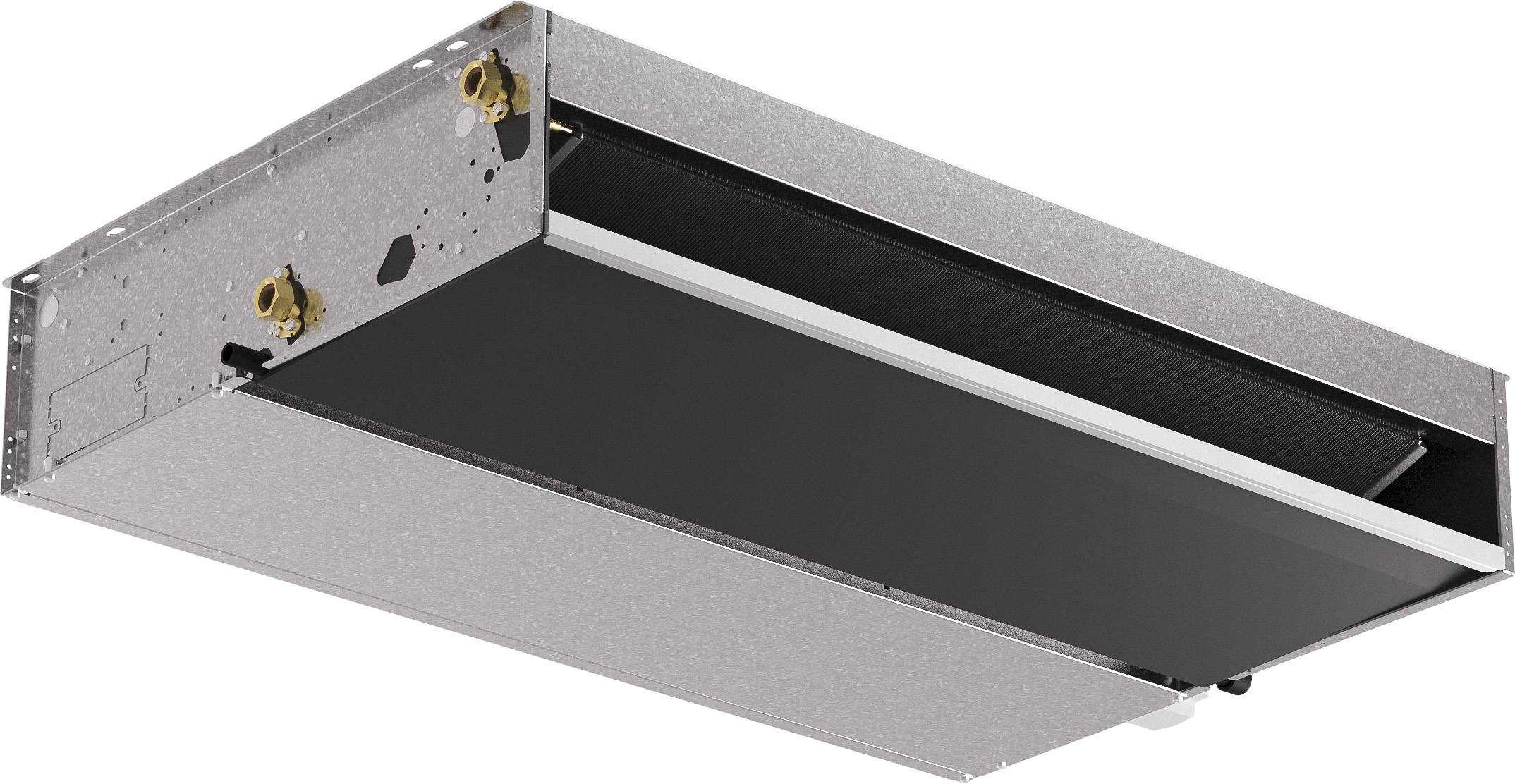

Carisma CSS-ECM

Carisma CSS-ECM is Sabiana’s high-pressure ducted fan coil designed to deliver high performance, acoustic comfort, energy efficiency and maximum control flexibility in a unit with an extremely compact height.

With a height of only 156 mm, Carisma CSS-ECM is an ideal solution for air conditioning working environments, offices, shops, restaurants and hotel rooms, especially when the project requires compact units capable of ensuring high available static pressure, up to 400 Pa.

The range is available in 3 sizes and features 3-row heat exchange coils, with the possibility of adding a 1-row coil for 4-pipe systems. This configuration makes Carisma CSS-ECM suitable for different system requirements, both in cooling and heating.

The technological heart of the unit is the electronically controlled permanent magnet synchronous motor, driven by an inverter board designed and developed in Italy. The air flow can be continuously adjusted via a 1-10 V signal generated by Sabiana controls or independent control systems.

Continuous air flow regulation helps improve acoustic comfort, respond more quickly to changes in thermal loads and maintain greater stability of the required room temperature. The result is efficient, precise and comfortable operation, with extremely low electrical consumption compared to traditional ducted units.

Compact, efficient and high-performing, Carisma CSS-ECM is the Sabiana solution for those looking for a high-pressure ducted fan coil that combines reduced dimensions, control flexibility, comfort and low energy consumption.
